Accelerating Shoring Projects: How Kemsolid KSI 16000 Transformed a Bay Area Retaining Wall Project
Job Site Report
Advanced Soil Stabilization & Shoring with Kemsolid KSI 16000
San Francisco Bay Area, United States
The demand for smart, efficient, and sustainable construction techniques is rapidly growing, especially in complex urban shoring and foundation engineering. In a recent project in the San Francisco Bay Area, Kemsolid Powered by KEMROC technology once again proved its leadership in soil stabilization and Trench-Soil-Mixing (TSM) applications.

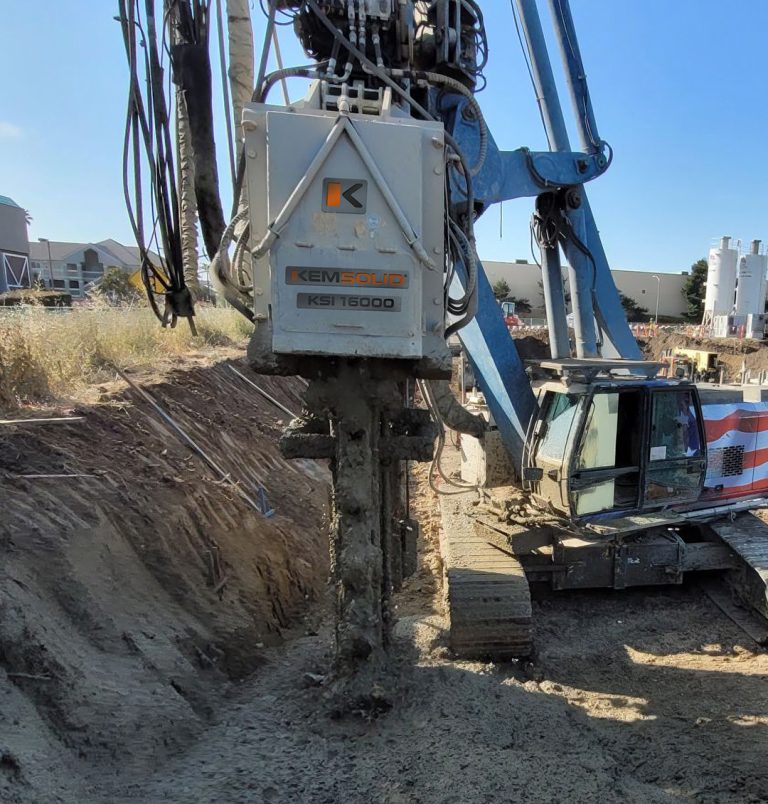

The project aimed to stabilize the soil for the construction of deep retaining walls as part of a critical shoring project. The contractor utilized the Kemsolid KSI 16000 attachment, combined with an ABI SM 18/24 rig, delivering exceptional performance across challenging soil remediation conditions.
Project Scope & Performance
The project required soil mixing at widths of 84 cm (33 inches) and depths ranging from 4.2 meters to 8 meters (14 ft to 26 ft). The KSI 16000 achieved an impressive production rate of 30 cm per minute, translating to 1 foot of wall per minute, allowing the team to accelerate project timelines by 2–3 times compared to traditional shoring methods like sheet piling or jet grouting.

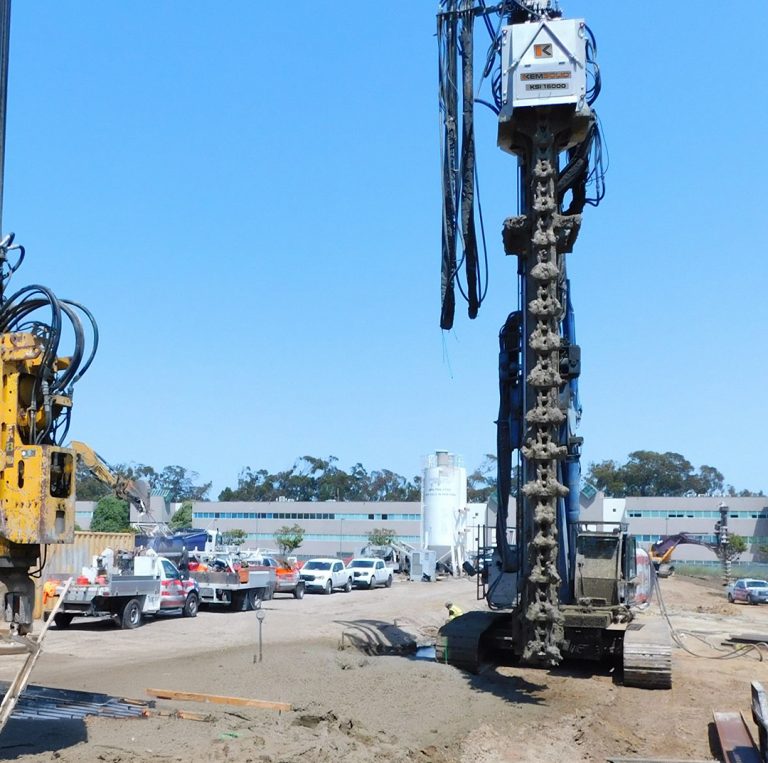

Using the Kemsolid KSI 16000, the team was able to mix walls up to 950 cm (37.5 in) wide and 16 meters (52 ft) deep. Importantly, the system produced an exceptionally consistent soil mix, with significantly reduced grout waste and optimal permeability characteristics, ensuring both structural integrity and cost-efficiency.
Innovative Setup

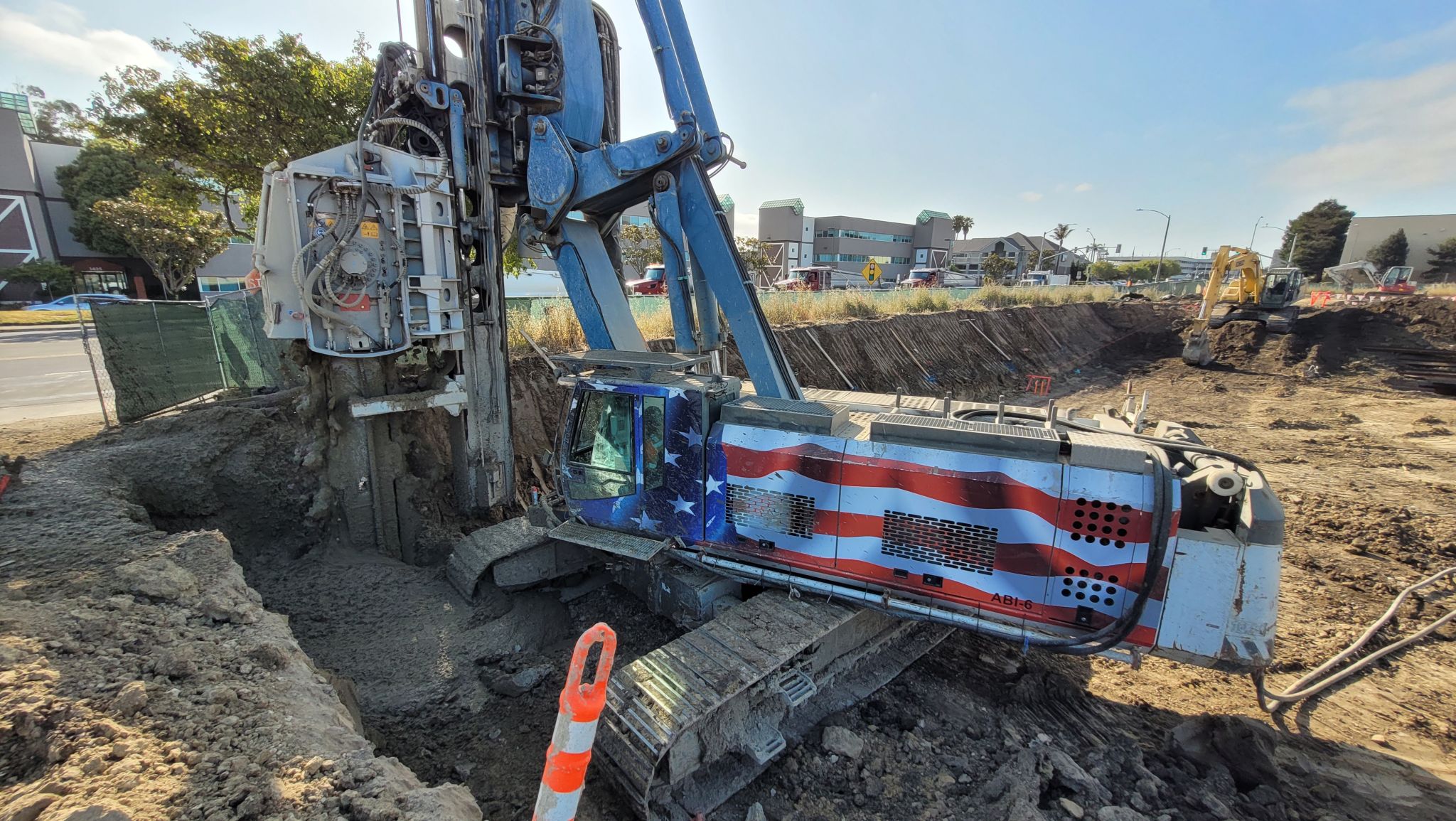

A key advancement in this project was the integration of the KSI blade with the ABI rig’s 180-degree rotatable mast. This allowed operators to efficiently perform soil mixing and wall construction even along zero lot lines, an area where excavator-based setups face limitations.
“We’ve used Kemsolid’s attachments for several years across various soil improvement, soil remediation, cut-off walls, and shoring projects,” shared the contractor. “This was our first project using the KSI 16000 on an ABI rig, and the results exceeded expectations. We achieved faster production, cleaner trenches, and reduced material costs.”
Benefits of using Kemsolid KSI smart solution:
- Increased production speed — 2–3x faster than traditional methods
- Excellent soil mix quality, even in challenging ground conditions
- Dramatically reduced grout waste and material costs
- Ability to mix on zero lot lines, improving site efficiency
- Enhanced adaptability and reduced equipment wear compared to conventional sheet piling
Kemsolid: The Future of Smart Soil Mixing
As foundation engineering evolves, Kemsolid offers a comprehensive range of solutions through its KSI series for Trench-Soil-Mixing (TSM) and the KRD MIX range for Mass-Soil-Mixing (MSM), enabling faster, more sustainable, and cost-effective construction.
This successful project in the USA demonstrates the value of combining German-engineered precision with cutting-edge soil mixing technology, helping contractors worldwide meet the challenges of today’s most demanding soil stabilization and shoring applications.
