Technical Specifications for KEMSOLID Products

Products Technical Specifications

Technical Specifications KSI

KSI 7000	KSI 12000	KSI 16000
Recommended excavator weight: 35 – 55 t	Recommended excavator weight: 50 – 80 t¹ \| 80 – 120 t [1]	Recommended excavator weight: 120 – 200 t [2]
Recommended rig weight: –	Recommended rig weight: 50 – 70 t	Recommended rig weight: 60 – 100 t
Rated hydraulic power: 130 kW	Rated hydraulic power: 220 kW	Rated hydraulic power: 300 kW
Mixing depth (A): 4 \| 5 \| 6 \| 7 m	Mixing depth (A): 6 \| 7 \| 8 \| 9 \| 10 \| 11 \| 12 m	Mixing depth (A): 6 \| 8 \| 10 \| 12 \| 14 \| 16 m
Mixing width (B): 350 – 500 mm	Mixing width (B): 500 – 650 mm	Mixing width (B): 450 – 950 mm
Housing width (C): 1,000 mm	Housing width (C): 1,360 mm	Housing width (C): 1,630 mm
Recommended chain speed: 2.0 – 2.5 m/s	Recommended chain speed: 2.0 – 2.5 m/s	Recommended chain speed: 2.0 – 2.5 m/s
Recommended oil flow: 280 – 350 l/min [3]	Recommended oil flow: 490–620 l/min	Recommended oil flow: 660–820 l/min
Max. oil flow: 410 l/min [3]	Max. oil flow: 740 l/min	Max. oil flow: 980 l/min
Maximum operating pressure: 400 bar	Maximum operating pressure: 400 bar	Maximum operating pressure: 400 bar
Torque at 380bar: 24,200 Nm	Torque at 380bar: 54,400 Nm	Torque at 380bar: 72,600 Nm
Cutting force at 380bar: 87 kN	Cutting force at 380bar: 156 kN	Cutting force at 380bar: 208 kN
Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa

KSI 7000	KSI 12000	KSI 16000
Weight at max. depth & max. width: 4,900 kg	Weight at max. depth & max. width: 13,500 kg	Weight at max. depth & max. width: 21,000 kg
Weight (per extension): 400 kg (1m)	Weight (per extension): 800 kg (1m)	Weight (per extension): 1900 kg (1m)

¹ KSI 12000: Attachment to excavators from 50 to 80 t possible with special adapter.

² KSI 16000: Attachment to excavators from 75 to 120 t possible with special adapter.

³ Oil flow: During adjustment, ensure that the maximum power does not exceed the machine’s rated power at any pressure point

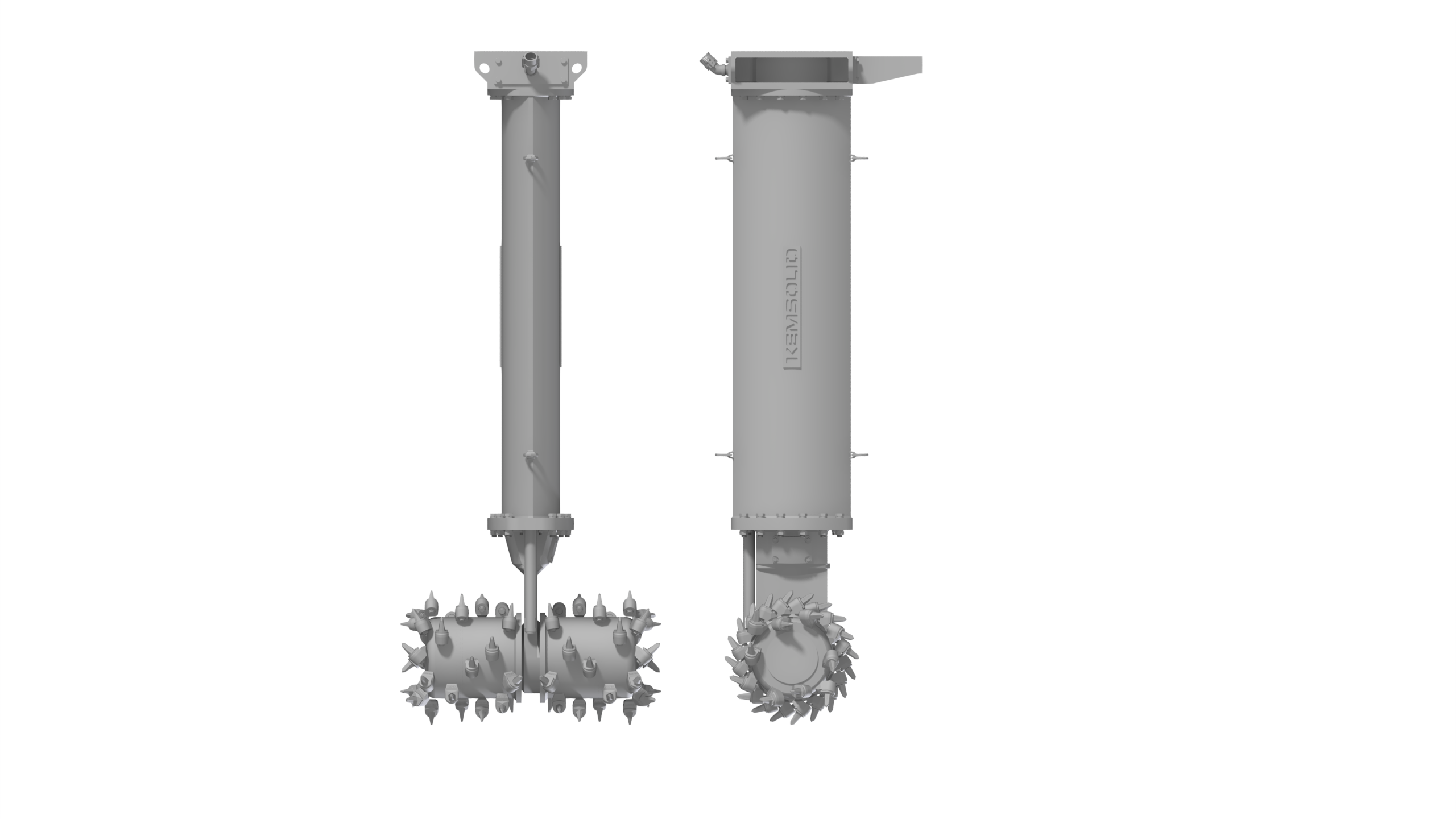

Technical Specifications KDM

KDM 120	KDM 150	KDM 155	KDM 165	KDM 175
Recommended excavator weight: 25 – 40 t	Recommended excavator weight: 30 – 40	Recommended excavator weight: 30 – 40	Recommended excavator weight: 35 – 50	Recommended excavator weight: 35 – 50
Rated power: 120 kW	Rated power: 150 kW	Rated power: 155 kW	Rated power: 165 kW	Rated power: 175 kW
Cutter length (A): 1,155 mm	Cutter length (A): 1,155 mm	Cutter length (A): 1,155 mm	Cutter length (A): 1,200 mm	Cutter length (A): 1,200 mm
Mixing width (B): 1,100 \| 1,300 mm	Mixing width (B): 1,300 \| 1,500 mm	Mixing width (B): 1,500 mm	Mixing width (B): 1,400 \| 1,700 mm	Mixing width (B): 1,700 \| 2,000 mm
Drum diameter (C): 775 mm	Drum diameter (C): 775 mm	Drum diameter (C): 775 mm	Drum diameter (C): 864 mm	Drum diameter (C): 864 mm
Recommended rpm: 65 rpm	Recommended rpm: 65 rpm	Recommended rpm: 65 rpm	Recommended rpm: 60 rpm	Recommended rpm: 60 rpm
Recommended oil flow: 300 l/min	Recommended oil flow: 325 l/min	Recommended oil flow: 360 l/min	Recommended oil flow: 360 l/min	Recommended oil flow: 425 l/min
Max. oil flow: 330 l/min	Max. oil flow: 365 l/min	Max. oil flow: 400 l/min	Max. oil flow: 400 l/min	Max. oil flow: 470 l/min
Max. operating pressure: 400 bar	Max. operating pressure: 400 bar	Max. operating pressure: 400 bar	Max. operating pressure: 400 bar	Max. operating pressure: 400 bar
Torque at 380bar: 27,200 Nm	Torque at 380bar: 29,700 Nm	Torque at 380bar: 32,600 Nm	Torque at 380bar: 36,300 Nm	Torque at 380bar: 42,900 Nm
Cutting force at 380bar: 70.1 kN	Cutting force at 380bar: 76.7 kN	Cutting force at 380bar: 84.2 kN	Cutting force at 380bar: 84.1 kN	Cutting force at 380bar: 99.2 kN
Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa	Max. ground compressive strength 10 MPa
Weight per mixing width: 1,550 \| 1,700 kg	Weight per mixing width: 1,700 \| 1,800 kg	Weight per mixing width: 1,800 kg	Weight per mixing width: 2,250 \| 2,500 kg	Weight per mixing width: 2,500 \| 2,700 kg
Toolholder/Pick box: PH32HD	Toolholder/Pick box: PH32HD	Toolholder/Pick box: PH32HD	Toolholder/Pick box: PH32HD	Toolholder/Pick box: PH32HD
Number of picks per mixing width: 48 \| 52 Pcs	Number of picks per mixing width: 52 \| 60 Pcs	Number of picks per mixing width: 60 Pcs	Number of picks per mixing width: 56 \| 68 Pcs	Number of picks per mixing width: 68 \| 76 Pcs
Standard mixing tool: Type DT 22/90/70/30 HQ	Standard mixing tool: Type DT 22/90/70/30 HQ	Standard mixing tool: Type DT 22/90/70/30 HQ	Standard mixing tool: Type DT 22/90/70/30 HQ	Standard mixing tool: Type DT 22/90/70/30 HQ

KDM 120	KDM 150	KDM 155	KDM 165	KDM 175
Standard hole pattern: LB40	Standard hole pattern: LB40	Standard hole pattern: LB40	Standard hole pattern: LB40	Standard hole pattern: LB40
Compatible rotation unit (KRM): KRM60	Compatible rotation unit (KRM): KRM60	Compatible rotation unit (KRM): KRM60	Compatible rotation unit (KRM): KRM70	Compatible rotation unit (KRM): KRM70

¹ Verlängerung auf Anfrage.

Technical Specifications KRX

KRX 70	KRX 110	KRX 120	KRX 130	KRX 140
Recommended excavator weight: 15 – 25 t	Recommended excavator weight: 20 – 35	Recommended excavator weight: 25 – 40	Recommended excavator weight: 25 – 40	Recommended excavator weight: 30 – 50
Rated power: 70 kW	Rated power: 110 kW	Rated power: 120 kW	Rated power: 120 kW	Rated power: 140 kW
Length of drive unit: 830 mm	Length of drive unit: 842 mm	Length of drive unit: 842 mm	Length of drive unit: 842 mm	Length of drive unit: 875 mm
Torque at 380 bar: 16.000 Nm	Torque at 380 bar: 25.400 Nm	Torque at 380 bar: 30.300 Nm	Torque at 380 bar: 33.000 Nm	Torque at 380 bar: 36.400 Nm
Max. oil flow at 10 bar: 300 l/min	Max. oil flow at 10 bar: 320 l/min	Max. oil flow at 10 bar: 350 l/min	Max. oil flow at 10 bar: 350 l/min	Max. oil flow at 10 bar: 390 l/min
Max. hydraulic pressure: 400 bar	Max. hydraulic pressure: 400 bar	Max. hydraulic pressure: 400 bar	Max. hydraulic pressure: 400 bar	Max. hydraulic pressure: 400 bar
Weight without attachment: 520 kg	Weight without attachment: 540 kg	Weight without attachment: 540 kg	Weight without attachment: 540 kg	Weight without attachment: 900 kg
Hex connection, standard 160 mm	Hex connection, standard: 160 mm	Hex connection, standard: 160 mm	Hex connection, standard: 160 mm	Hex connection, standard: 160 mm
